Description
Specifications
| SHMGAL-18450ULTEU | |
|---|---|
| WIDTH: | 1.8m |
| HITCH: | EURO |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 425Kg |
| DIMENSIONS: | 1840 X 900 X 850 |
| HP Range: | 80-120 |
| SHMGAL-18450ULTCH | |
|---|---|
| WIDTH: | 1.8m |
| HITCH: | CHALLENGE AUS |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 425Kg |
| DIMENSIONS: | 1840 X 900 X 850 |
| HP Range: | 80-120 |
| SHMGAL-18350ULTEU | |
|---|---|
| WIDTH: | 1.8m |
| HITCH: | EURO |
| STEEL TINE GRADE: | ECO350 High Tensile |
| WEIGHT: | 425Kg |
| DIMENSIONS: | 1840 X 900 X 850 |
| HP Range: | 80-120 |
| SHMGAL-18350ULTCH | |
|---|---|
| WIDTH: | 1.8m |
| HITCH: | CHALLENGE AUS |
| STEEL TINE GRADE: | ECO350 High Tensile |
| WEIGHT: | 425kg |
| DIMENSIONS: | 1840 X 900 X 850 |
| HP Range: | 80-120 |
| SHMGAL-21450ULTEU | |
|---|---|
| WIDTH: | 2.1m |
| HITCH: | EURO |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 470Kg |
| DIMENSIONS: | 2140 X 900 X 850 |
| HP Range: | 90-150 |
| SHMGAL-21450ULTCH | |
|---|---|
| WIDTH: | 2.1m |
| HITCH: | CHALLENGE AUS |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 470Kg |
| DIMENSIONS: | 2140 X 900 X 850 |
| HP Range: | 90-150 |
| SHMGAL-21350ULTEU | |
|---|---|
| WIDTH: | 2.1m |
| HITCH: | EURO |
| STEEL TINE GRADE: | ECO350 High Tensile |
| WEIGHT: | 470Kg |
| DIMENSIONS: | 2140 X 900 X 850 |
| HP Range: | 90-150 |
| SHMGAL-21350ULTCH | |
|---|---|
| WIDTH: | 2.1m |
| HITCH: | CHALLENGE AUS |
| STEEL TINE GRADE: | ECO350 High Tensile |
| WEIGHT: | 470kg |
| DIMENSIONS: | 2140 X 900 X 850 |
| HP Range: | 90-150 |
| SHMGAL-24450ULTEU | |
|---|---|
| WIDTH: | 2.4m |
| HITCH: | EURO |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 520Kg |
| DIMENSIONS: | 2440 X 900 X 850 |
| HP Range: | 120-180 |
| SHMGAL-24450ULTCH | |
|---|---|
| WIDTH: | 2.4m |
| HITCH: | CHALLENGE AUS |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 520Kg |
| DIMENSIONS: | 2440 X 900 X 850 |
| HP Range: | 120-180 |
| SHMGAL-24350ULTEU | |
|---|---|
| WIDTH: | 2.4m |
| HITCH: | EURO |
| STEEL TINE GRADE: | ECO350 High Tensile |
| WEIGHT: | 520Kg |
| DIMENSIONS: | 2440 X 900 X 850 |
| HP Range: | 120-180 |
| SHMGAL-24350ULTCH | |
|---|---|
| WIDTH: | 2.4m |
| HITCH: | CHALLENGE AUS |
| STEEL TINE GRADE: | ECO350 High Tensile |
| WEIGHT: | 520Kg |
| DIMENSIONS: | 2440 X 900 X 850 |
| HP Range: | 120-180 |
Key Features and Benefits
- Tough 16mm ECO350 High Tensile Teeth
- Wear Resistant 16mm XD450 Abrasion Resistant Teeth
- Massive jaw opening
- HD Reinforced Greaseable Pivots
- Proprietary HD Pin System
- Oversize Full width hydraulic hose protection
- Heavy Duty Integrated Hitch
- Motion stops on claw
- Locally made hydraulic cylinders
- 100% Australian Made and Fabricated

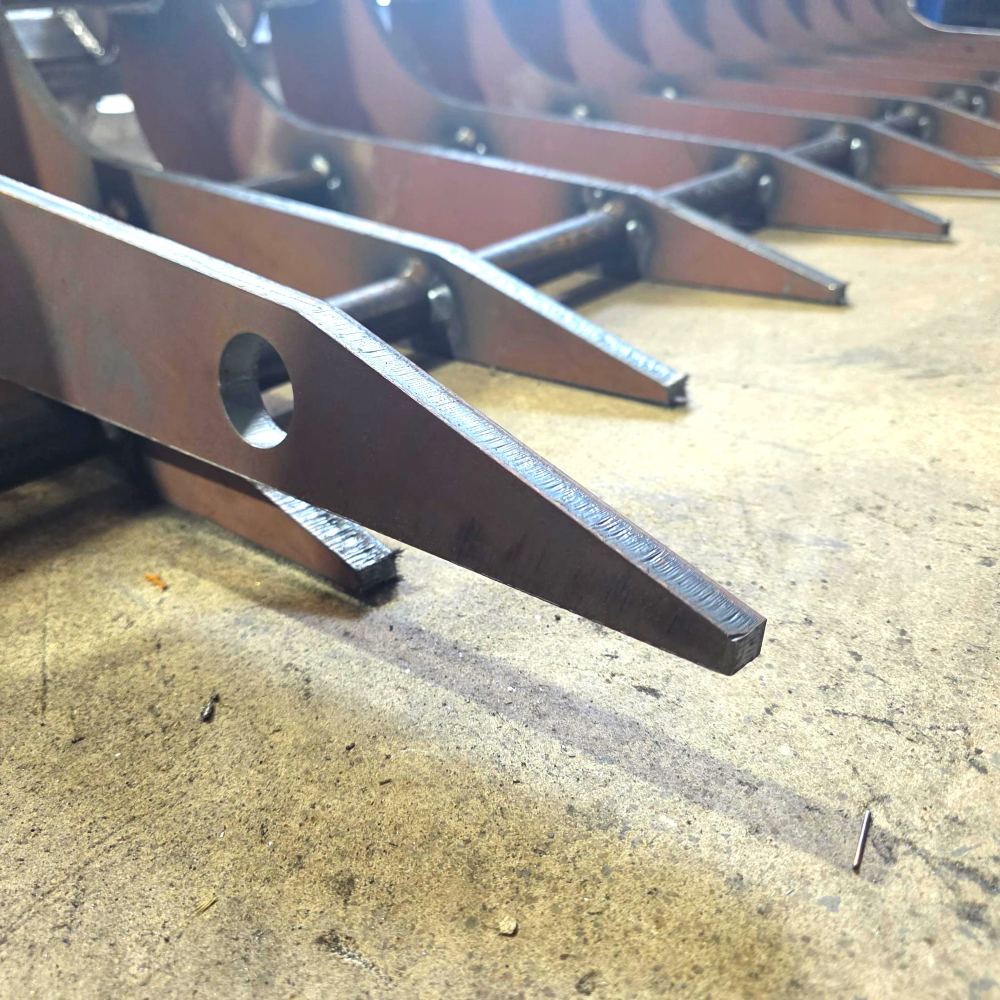

Tough 16mm ECO350 High Tensile Teeth
ECO350 Teeth are the match for medium to heavy timber and scrub work. The high tensile grade means no bent teeth and the perfect attachment for everyday cleanup tasks.

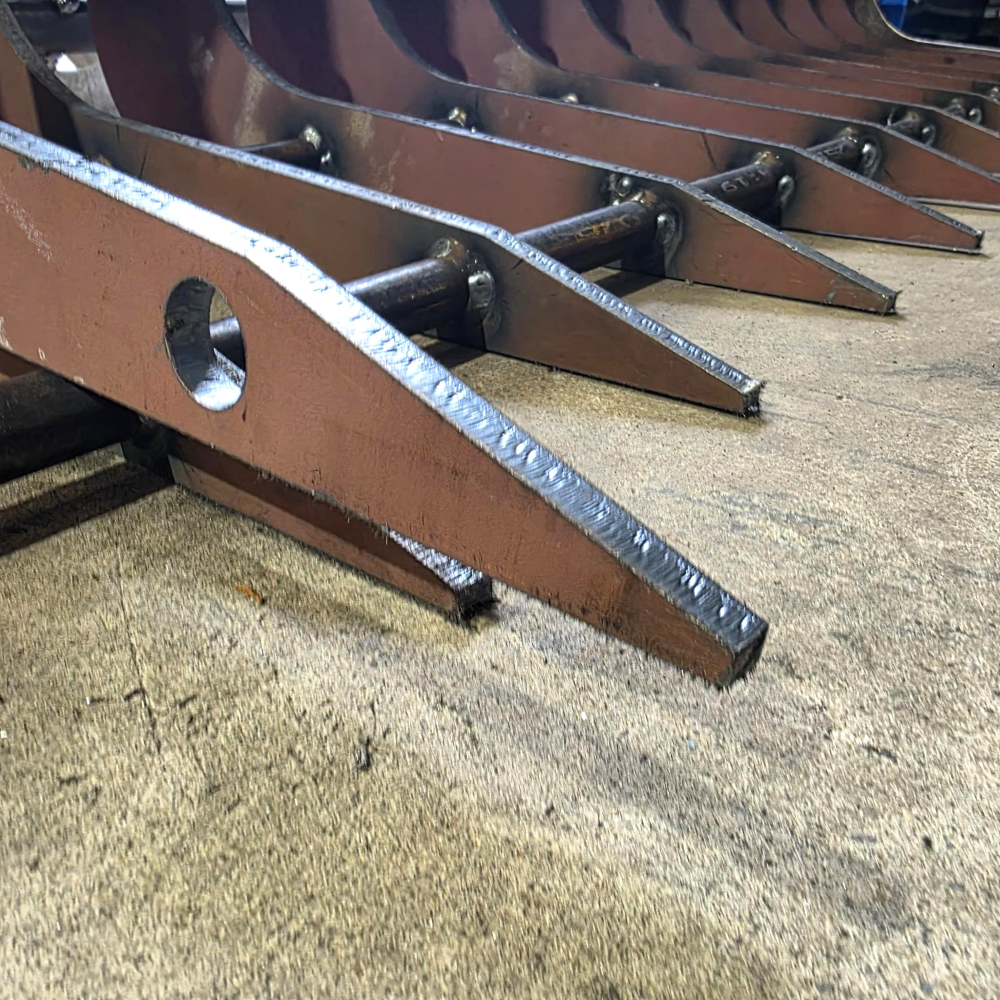

Wear Resistant 16mm XD450 Abrasion Resistant Teeth
For life-long performance in the harshest of conditions. The XD450 teeth stand up to everything you can put them through. From abrasive rock work, running through the ground all day and heavy timber work – they will keep their shape every single time.

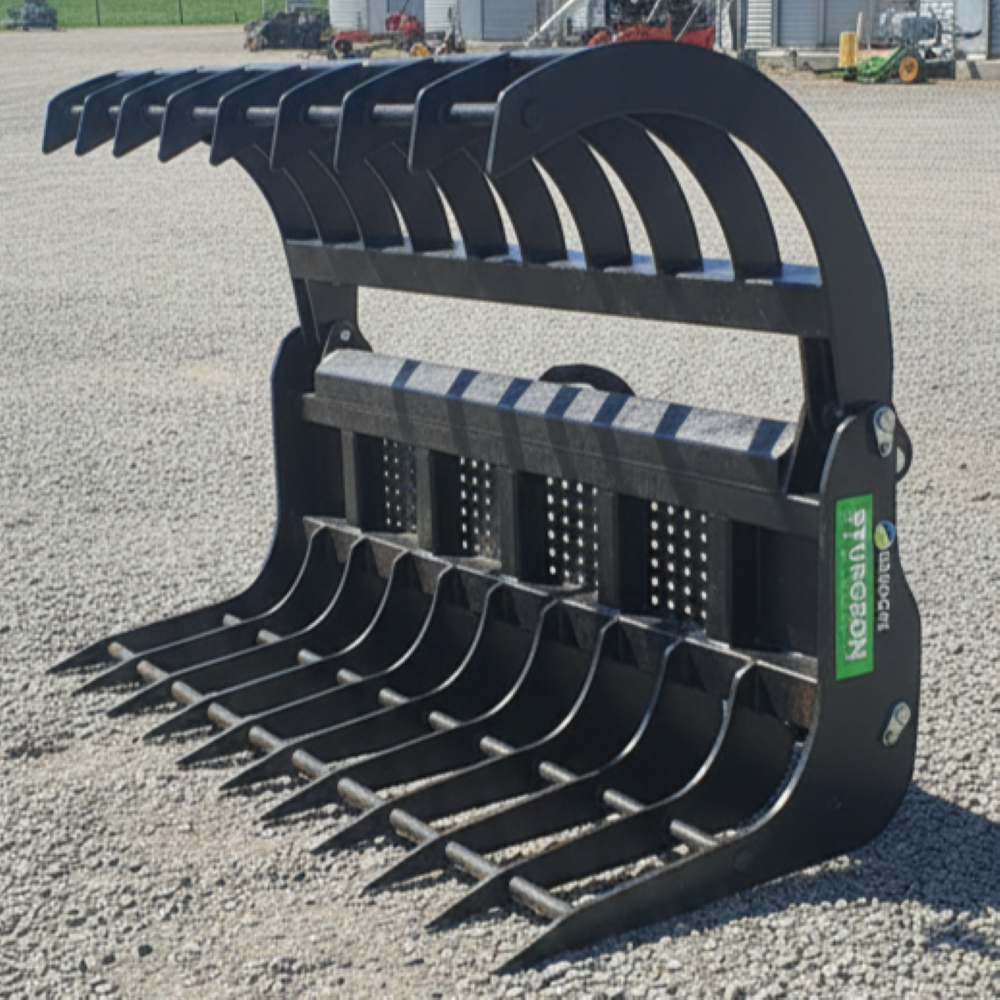

Massive jaw opening
With the massive jaw opening of 1.4m and bottom tine length of 700mm, there won’t be much that you can’t handle.

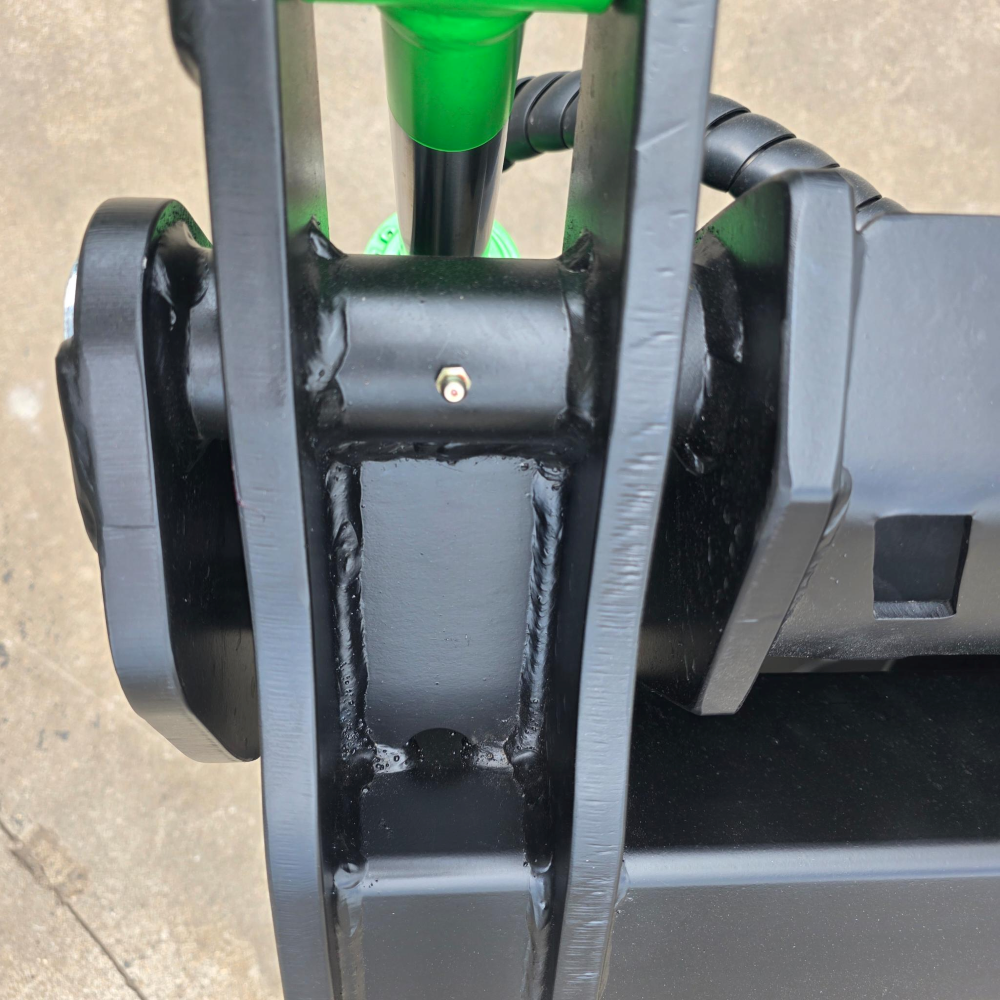

HD Reinforced Greaseable Pivots
Never fear breaking a pivot or wearing a pin with the MULTIGRAB HD reinforced pivots. Fully fabricated construction ensures a life of reliability.

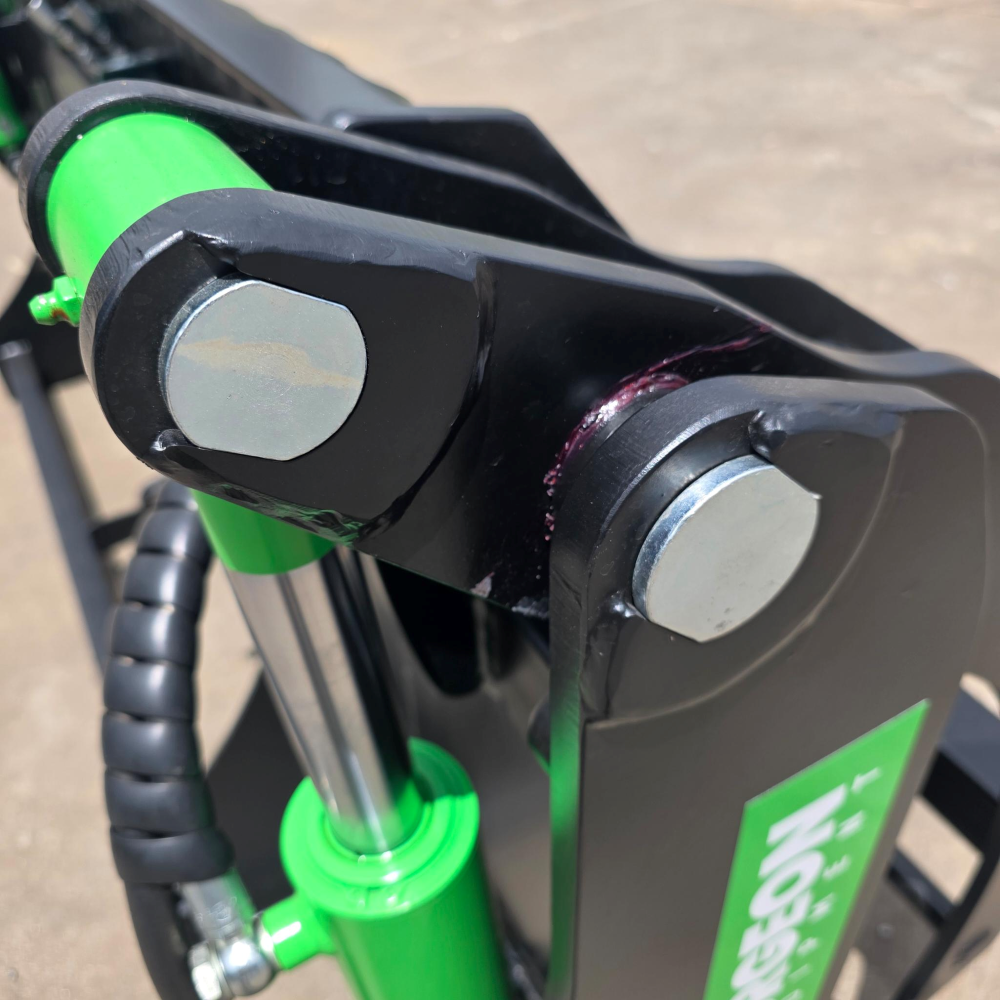

Proprietary HD Pin System
We do it different. No bolts coming loose. No heads shearing off or being worn down by abrasion. We knew this was a problem, so we developed our own pin system.

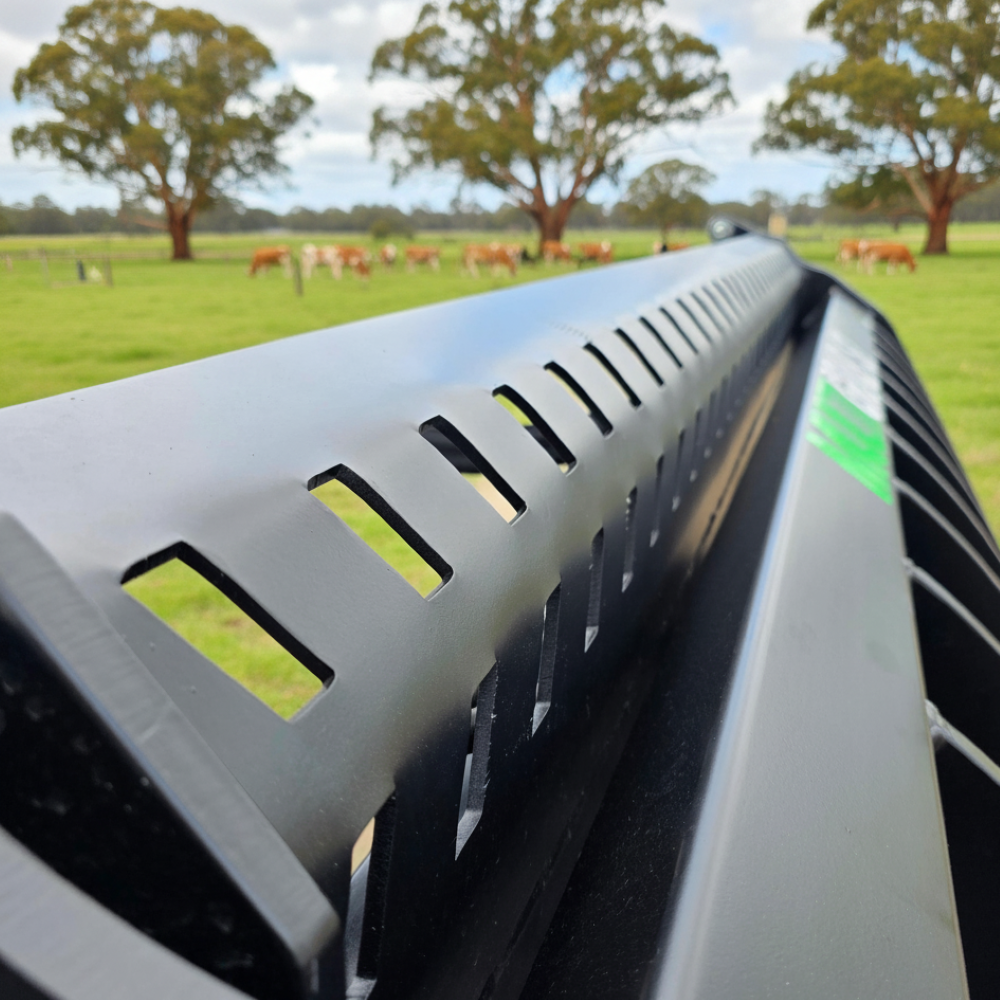

Oversize Full width hydraulic hose protection
A broken hose or a damaged loader pickup is wasted time and money. The job needs doing without these problems. Fabricated from heavy gauge steel plate, this protection will never fail an operator.

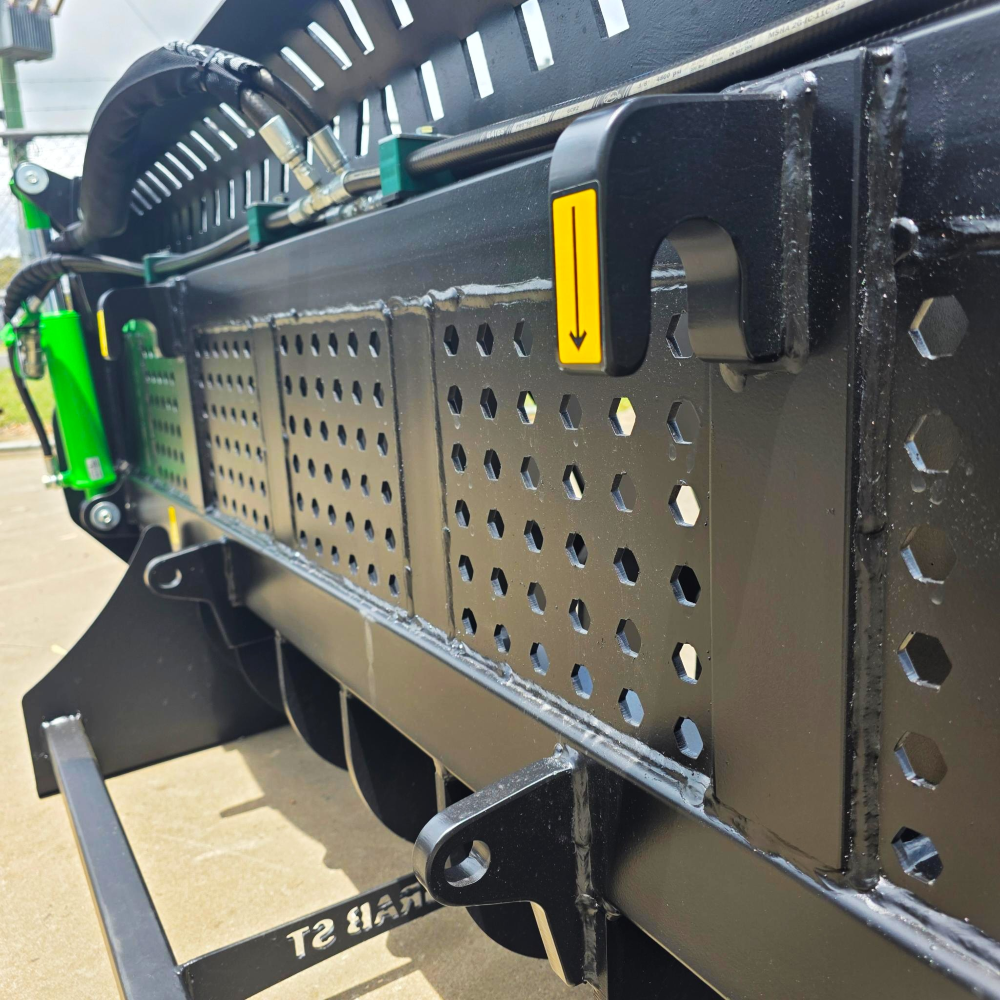

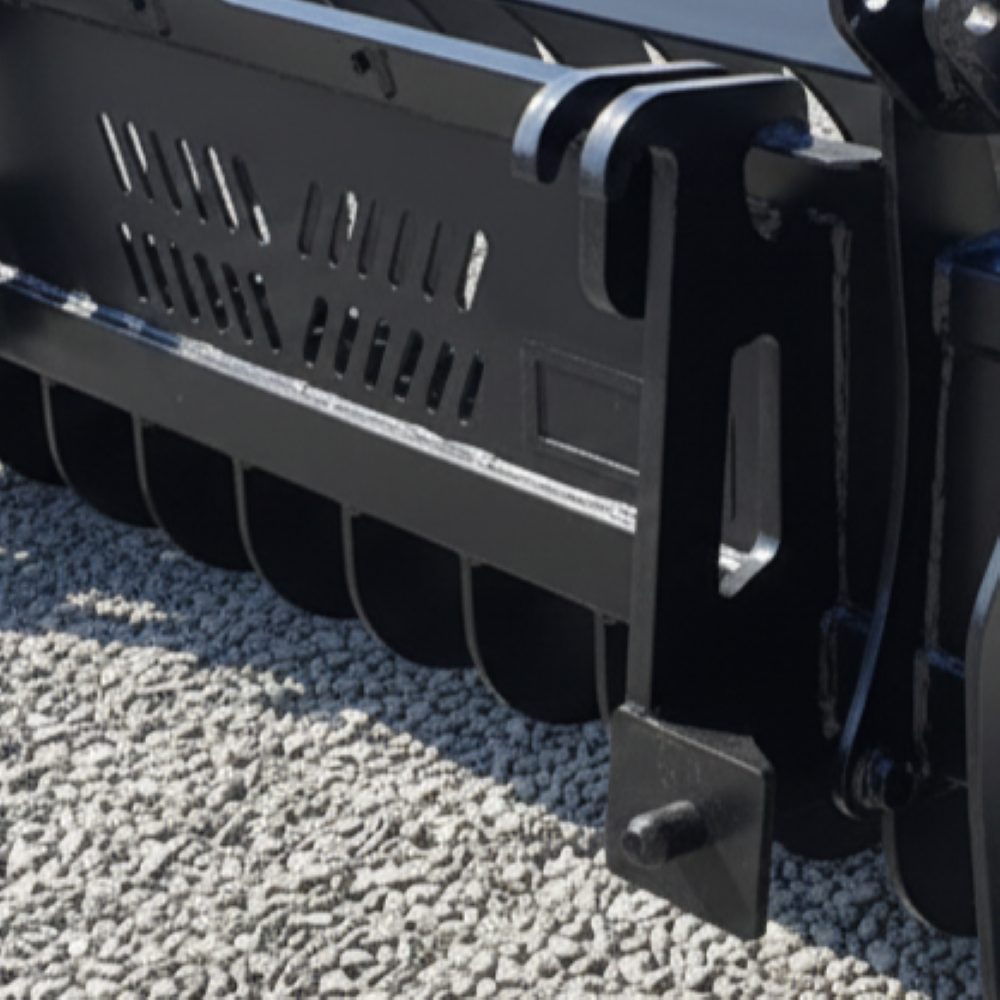

Heavy Duty Integrated Hitch
No off the shelf hitch pickups used here. We designed our own. Perfectly integrated and reinforced – you can have confidence in your attachment.

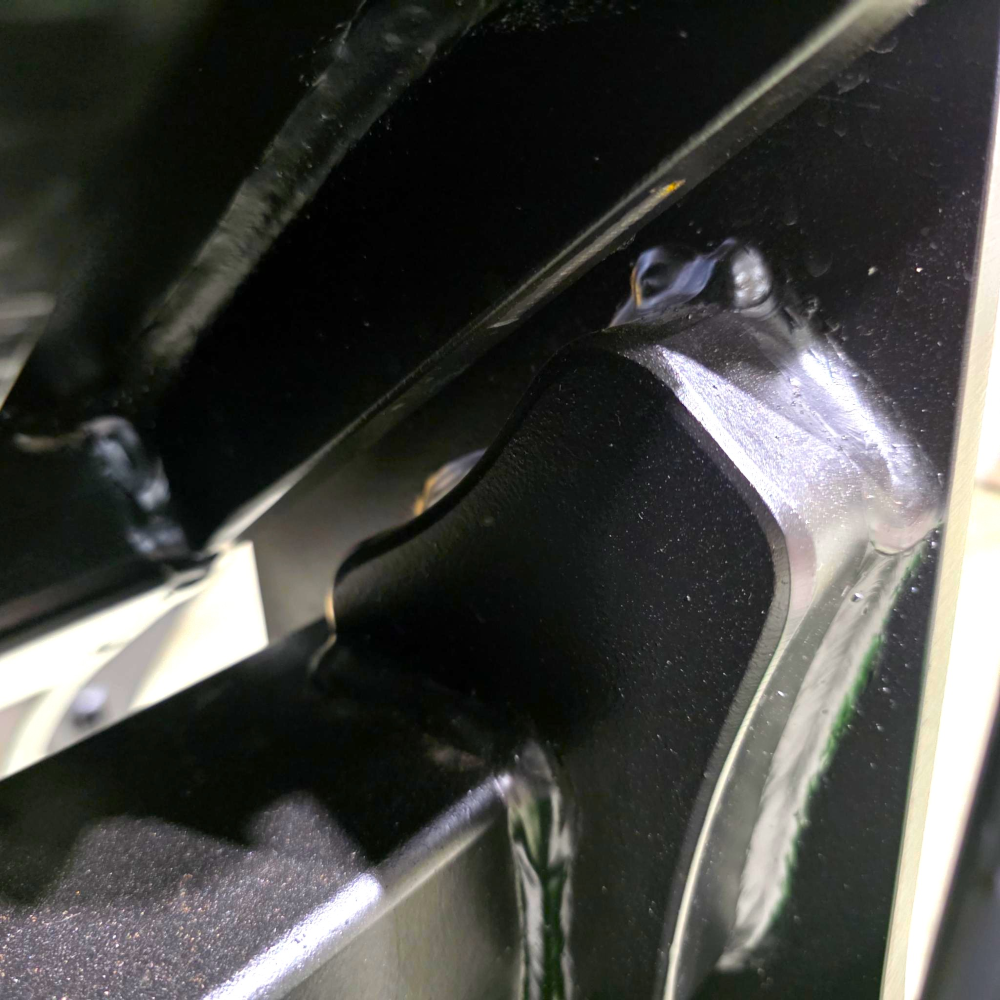

Motion stops on claw
Whether it is up, or whether it is down. Heavy plate stops to protect the cylinders from excessive forces. We know operators.

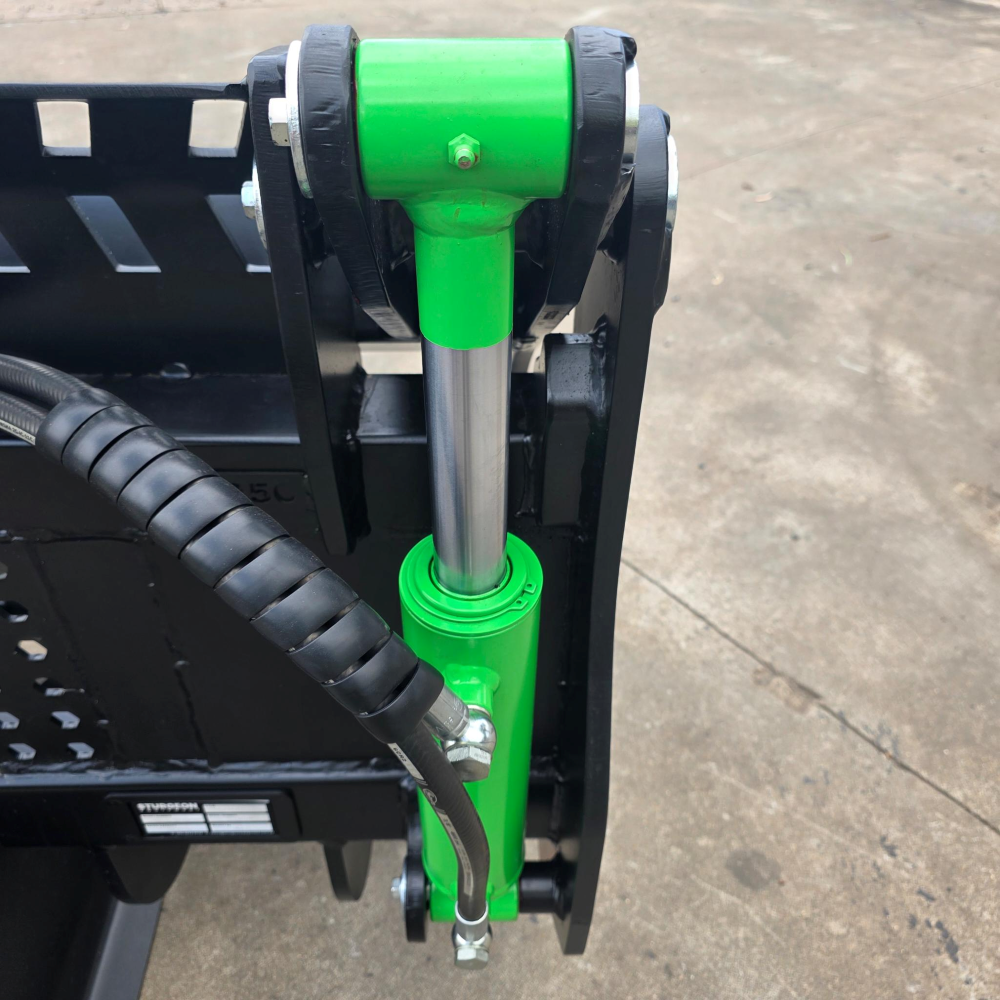

Locally made hydraulic cylinders
Locally Made and supported Hydraulic Cylinders. Made tough for harsh operating conditions and easily serviceable with parts available from local suppliers.
100% Australian Made and Fabricated:
100% Manufactured by Sturgeon Equipment in our Hamilton Facility to the highest quality standards. Only Aussie Made!
